1864 OC-1
Repunched Date

Die Pair 1 - A
Date Grid JL of C / 5-2.0 / Level
Obverse Die States a, b
Estimated Rarity R2
1, 4 Vertical VH, H
Reverse Die States a, b, c, d



Comments:
   This is the only use of Obverse 1 and the only use of Reverse A in 1864.
Reverse A is transitional. It was subsequently used to create OC-2, OC-3, and OC-4 in 1865.


Obverse 1

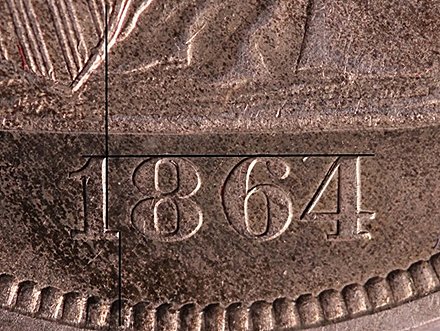

Obverse 1 exhibits no notable die markers, but the high date position is sufficient for conclusive attribution. The photo below shows the Obverse 1 attribution grid.



1864 Obverse 1 attribution grid

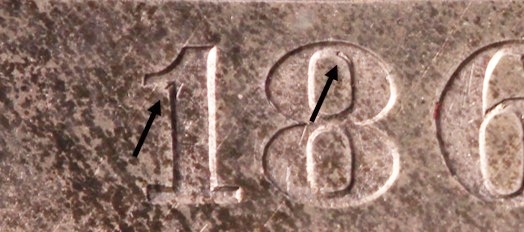

Obverse 1 exhibits light repunching on the 18, shown in the photo below.



1864 Obverse 1 repunched 18


Obverse 1 Die States
  1. Perfect die.
  2. Very faint die clashing visible in Miss Liberty's lap.
No later die states have been observed.


Reverse A

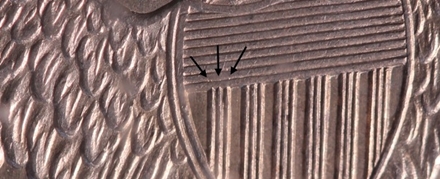

Reverse A displays very faint extensions of the first 3 vertical shield lines that allow definitive attribution for mid- to high-grade examples. These are shown in the following photo.



1864 Reverse A shield line extensions


Reverse A Die States
  1. Perfect die.
  2. A very faint die crack across the top of ERI.
  3. Very faint die clashing visible in the second shield recess.
  4. Faint die cracks surround the reverse.
No later die states have been observed.



Photo credits:

Obverse 1 and Reverse A:   1864 PCGS AU details, cleaned, from the Osburn-Cushing reference collection.
